Rectifier Diode
D240
Technica l Da ta
Typical applications : All purpose high power rectifier diodes, Non-controllable and half con-
trolled rectifiers .
Type No.
V
RRM
V
RSM
(Volts)
(Volts)
D240/02
200
300
D240/04
400
500
D240/08
800
900
D240/12
1200
1300
D240/16
1600
1700
Symbol
Conditions
Values
I
F(AV)
Sin 180 ; Tcase = 125 °C
240 A
I
FSM
Tvj = 25 °C ; 10 ms
6000 A
Tvj = 180 °C ; 10 ms
5000 A
I
2
t
Tvj = 25 °C
180000 A
2
s
Tvj = 180 °C
125000 A
2
s
I
RRM
Tvj = 180 °C
60 mA max
V
F
Tvj = 25 °C ; I
F
= 750 A
1.4 V max
V
0
Tvj = 180 °C
0.85 V
R
0
Tvj = 180 °C
0.60 m
R
th(j-c)
0.20 °C/W
R
th(c-h)
0.03 °C/W
T
vj
180 °C
T
stg
-40.....+ 180 °C
Mounting torque
SI units
30 Nm / 8 Nm per Bolt
Weight
Approx
200 g

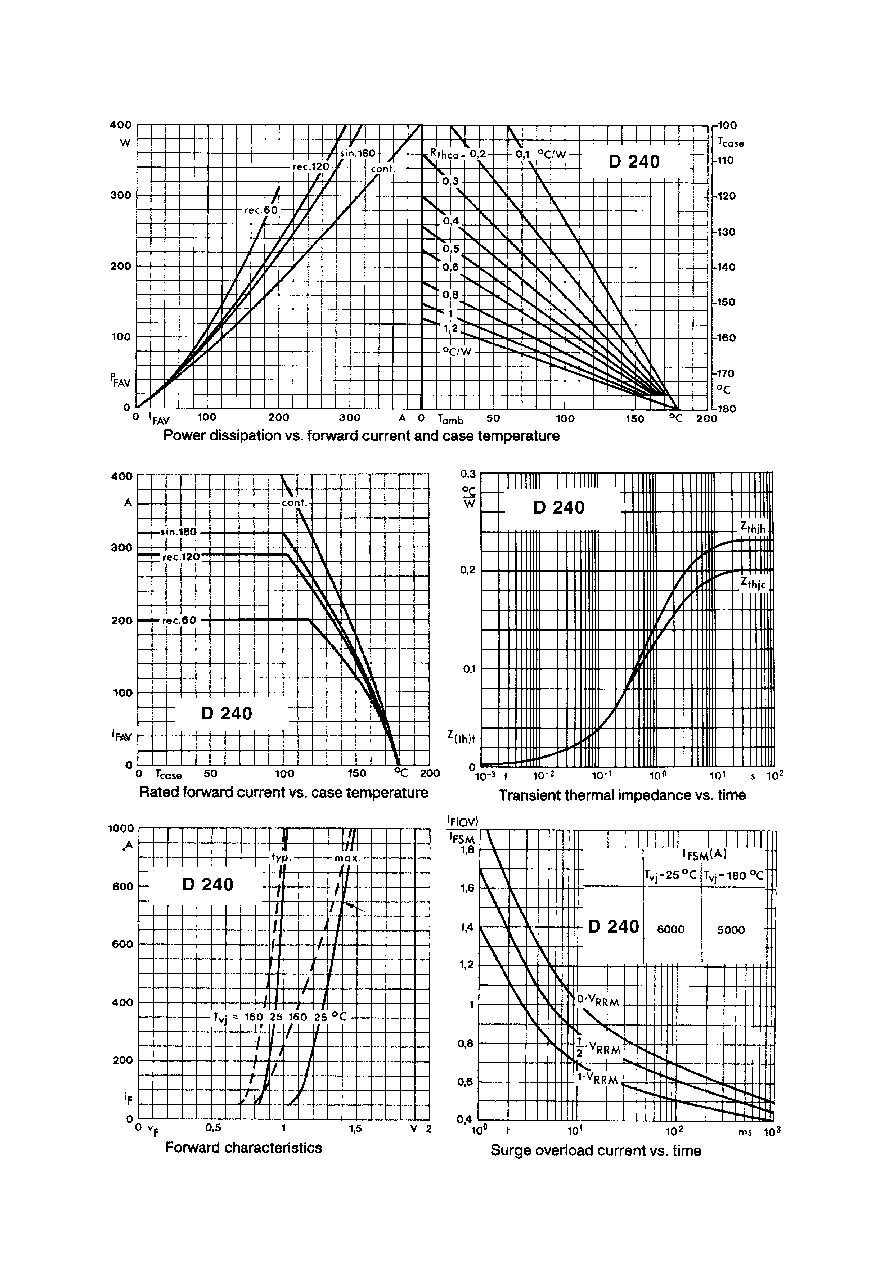

Case outline
B / H
F ea tures
· Reverse voltage upto 1600 V.
· Hermatic glass to metal seal
· C : Cathode to stud
· A : Anode to stud
PACAKAGE DEATILS
DO NOT SCALE
All Dimensions in mm
PDF
ZIP
