Rectifier Diode
D150
Technica l Da ta
Typical applications : All purpose high power rectifier diodes, Non-controllable rectifiers .
Free-wheeling diodes & welding
Type No.
V
RRM
V
RSM
(Volts)
(Volts)
D150/02
200
300
D150/04
400
500
D150/08
800
900
D150/12
1200
1300
D150/14
1400
1500
D150/16
1600
1700
Symbol
Conditions
Values
I
F(AV)
Sin 180; Tcase = 140 °C
150 A
I
FSM
Tvj = 175 °C ; 10 ms with 50% V
RRM
4.5 KA
I
2
t
Tvj = 175 °C ; 10 ms
101000 A
2
s
Tvj = 175 °C ; 3 ms
74000 A
2
s
I
RRM
Tvj = 175 °C
15 mA max
V
F
Tvj = 25 °C ; I
F
= 500 A
1.35 V max
V
0
Tvj = 175 °C
0.85 V
R
0
Tvj = 175 °C
1.10 m
R
th(j-c)
d.c.
0.20 °C/W
Half wave
0.22 °C/W
3 phase
0.30 °C/W
R
th(c-h)
0.15 °C/W
T
vj
175 °C
T
stg
-40.....+ 175 °C
Mounting torque
SI units
10 Nm / 8Nm per Bolt
Weight
Approx
100g
/
170g
Case outline
M,W
/
H
F ea tures
· Reverse voltage upto 1600 V.
· Hermatic glass to metal seal
· High surge capability
· C : Cathode to stud
· A : Anode to stud

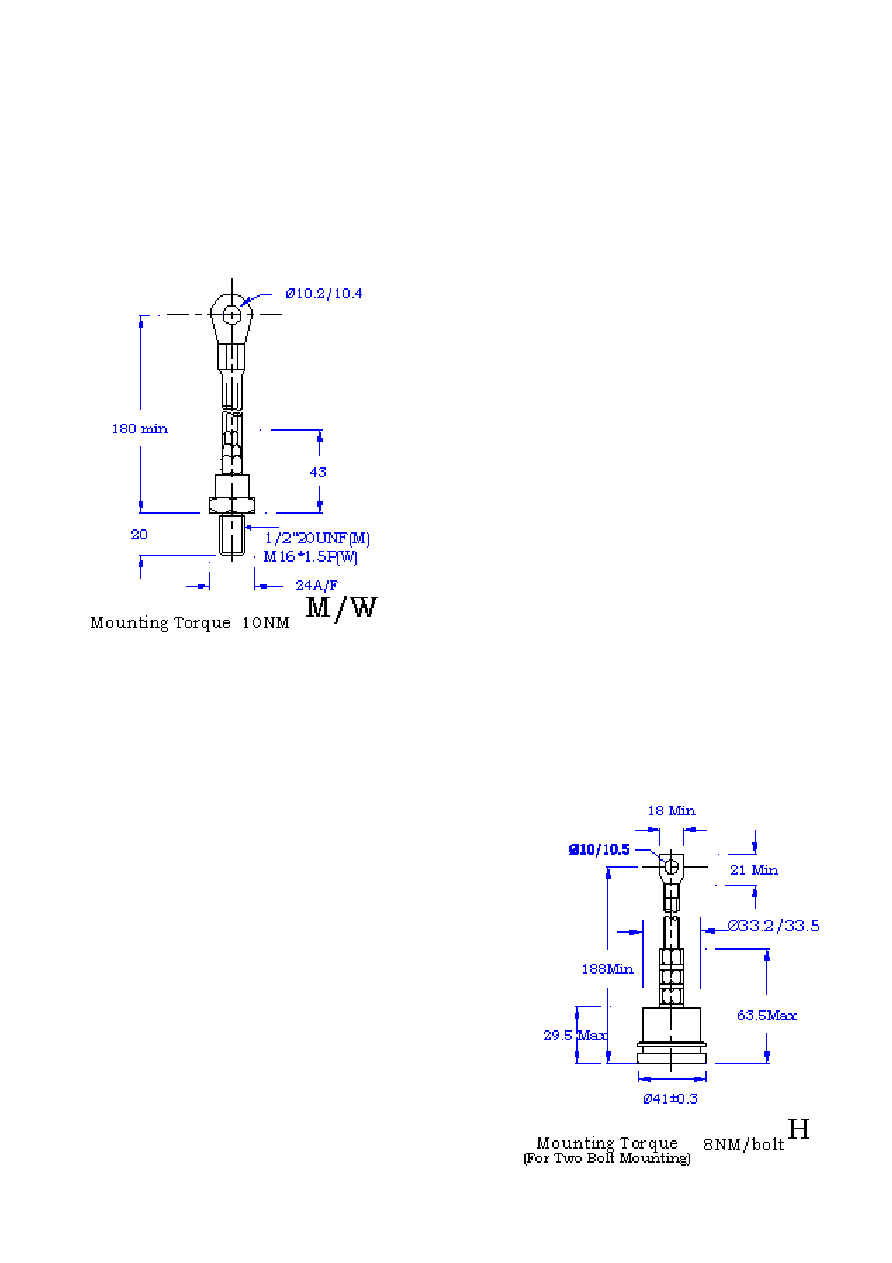

PACAKAGE DEATILS
DO NOT SCALE
All Dimensions in mm
